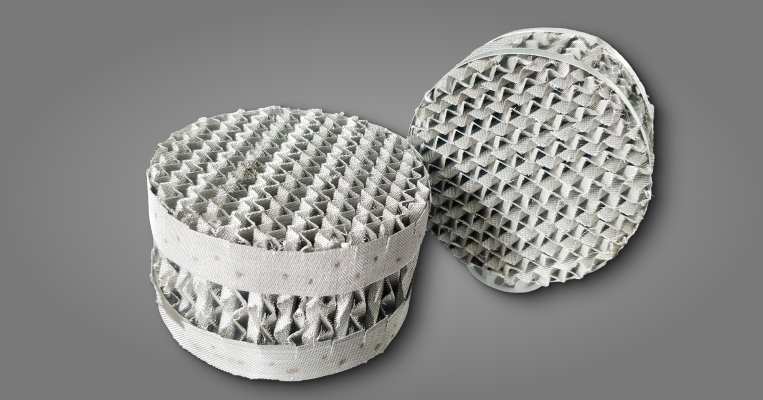

Wiremesh Structured Packing (KUBPAK-WM)

Wire mesh Structured Packing (KUBPAK-WM)

Wire Mesh Structured Packing has been successfully employed in the business for over 10 years permitting difficult separation tasks to be cultivated. They are for the most part used in little to medium width sections for partitions requiring the greatest number of theoretical stages in minimum column height. This packing is well suited for applications that require high separation efficiency and minimum hold-up. Due to the Ultra-high-efficiency of column packings, they are extremely advantageous in laboratory distillation systems.

Kuber Precision Technology manufactures and supplies wire mesh structured packing to industries in India, the USA, Europe, and UAE.

Packing Types Surface Area (m2/m3)
KUB-WM 5.0M 500
KUB-WM 7.5L 750
Key Characteristtics Excellent wetting Characteristics, Large number of theoretical stages, Low overall height, Capillary effect of special wire mesh, High fractionation efficiency and capacity, Large number of theoretical stages.
Material of construction (MOC) Stainless steel, High Nickel Alloys, Hastelloy, Titanium, Copper, Tantalum, Monel.
F-factor 1.5 to 2.2
Surface Area 500 to 750 m2/m3
NTSM 6 to 8.5
Application High vacuum to low pressure drop requirement. Fatty alcohols, Processing of specialty chemicals, Monomers from plastics, Pharmaceuticals, Fine Chemicals, Isomer mixture separation. Suitable for temperature sensitive compounds, low-liquid loading systems & isomer separation.


  • Low overall height.
  • High fractionation efficiency and capacity
  • It has low-pressure drop per theoretical stage and minimum hold up characteristics which makes it ideally suited for vacuum distillation
At Kuber we always endeavour to increase the value we deliver to our customers by challenging existing boundaries and design, develop and produce state of the art mass transfer equipment offering you solutions for any of your processes and applications.


It is a high-efficiency, corrugated-type packing constructed with a wire mesh material. This product is typically used for fine chemical distillation.

Wire-mesh structured packing has high separation efficiency even at very small liquid loads, making it very suitable for the distillation of thermally sensitive products.

Random packing uses a random distribution of small packing materials to assist in the separation process, while structured packing uses larger, fixed packing structures.

Packed distillation columns allow rising vapors to contact descending condensate. The more vapor-liquid contacts the better the separation.
