Support Grid Used For Structured Packing

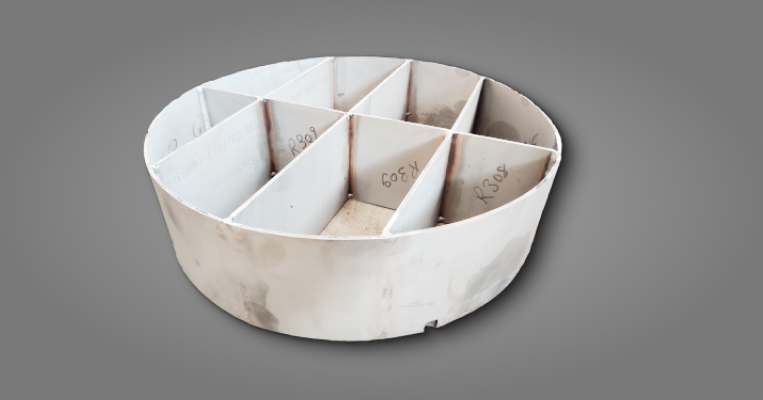

support grid for structured packing
Support grids for structured packing, also known as packing support plates, are critical components in achieving the necessary mechanical strength for deep beds of packing in distillation and separation columns. These grids ensure that the structured packing is securely supported, preventing bed collapse and maintaining efficient operation. Kuber Precision Technology offers a comprehensive range of support grids designed to optimize gas and liquid distribution while minimizing the risk of flooding within the system.
Our support grids are engineered to deliver high efficiency in both gas and liquid circulation, ensuring optimal performance of your tower packing bed. The robust design of these grids guarantees long-term reliability and durability, even in demanding applications.
Key Features:
High Mechanical Strength: Engineered to support deep beds of structured packing, ensuring stability and durability.
Optimized Flow Distribution: Designed to facilitate even gas and liquid circulation, enhancing the efficiency of separation processes.
Flooding Prevention: Reduces the risk of liquid flooding across the system, ensuring consistent operation.
Custom Solutions: Available in various materials and configurations to meet specific industry needs and application requirements.
Applications: Distillation Columns: Essential in supporting packing beds in large-scale distillation processes.
Separation Towers: Ideal for chemical, petrochemical, and refining industries where efficient separation is critical.
Absorption Systems: Enhances the performance and reliability of gas absorption towers. Kuber Precision Technology’s support grids for structured packing are the preferred choice for industries seeking reliable, high-performance solutions for their separation and distillation processes.
FAQ'S
Support grid for structured packing is designed to achieve the respective mechanical strength for packing beds and dynamic liquid hold-up.
In structured packing, support grids bear on a support ring welded to the column. They keep the packing in position and are used, in certain columns, for distributing the gaseous phase.
Random packing uses a random distribution of small packing materials to assist in the separation process, while structured packing uses larger, fixed packing structures.
It is a range of materials that are specially designed to use in distillation and absorption columns, as well as chemical reactors. They usually consist of thin corrugated metal plates or gauzes, designed to force fluids on complicated paths throughout the column.
