Structured Lab Packing (KUBPAK Lab)

STRUCTURED Lab Packing (KUBPAK Lab)

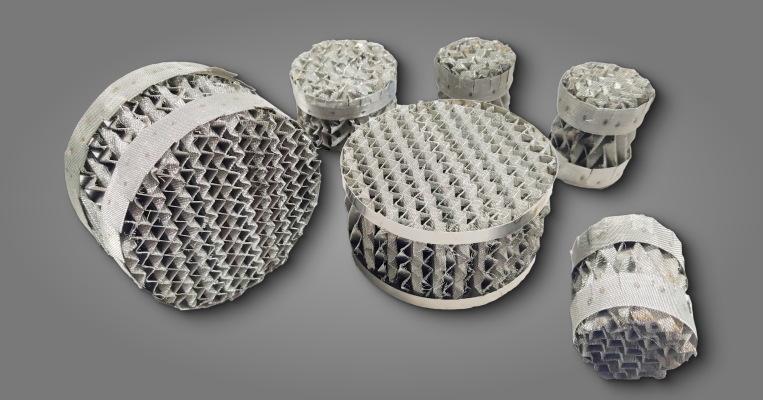

KPT also offers specially designed Structured Lab Packing for R&D trials and pilot unit distillation. These are efficient packing with very low pressure drop 0.1 to 0.4 mbar/stage, suits low liquid load 0.05 m3/m2h, higher surface region, and NTSM.
Series KUBPAK-Lab 10, KUBPAK-Lab 20
Key Characteristtics
NTSM 20-40
Diameter 25 - 100 mm
Material of construction (MOC) Stainless steel or any metal/alloy according to customer request.
Application Structured Lab Packing Can be used for High vacuum to 2 mbar.
Distillation of components prone to decomposition.
Acquire reliable scale-up rules.
At Kuber we always endeavour to increase the value we deliver to our customers by challenging existing boundaries and design, develop and produce state of the art mass transfer equipment offering you solutions for any of your processes and applications.

FAQ'S

It is a range of materials that are specially designed to use in distillation and absorption columns, as well as chemical reactors. They usually consist of thin corrugated metal plates or gauzes, designed to force fluids on complicated paths throughout the column.

It is basically used in laboratory columns from 20 to 110 mm diameter and for initial runs of pilot columns.

Random packing uses a random distribution of small packing materials to assist in the separation process, while structured packing uses larger, fixed packing structures.

It is made from custom-made structured glass packing (made of borosilicate glass), specially designed for maximum absorption.
