Raschig Rings Packing: Key Benefits for Distillation Columns

When it comes to distillation column internals, Raschig rings have long been a reliable choice for enhancing the efficiency of mass transfer processes. Known for their simple yet effective design, Raschig rings packing offers numerous benefits in industrial distillation applications. Whether you’re refining chemicals, processing petrochemicals, or handling other complex separations, understanding the role of Raschig rings can help you optimize your distillation column’s performance.

What Are Raschig Rings?

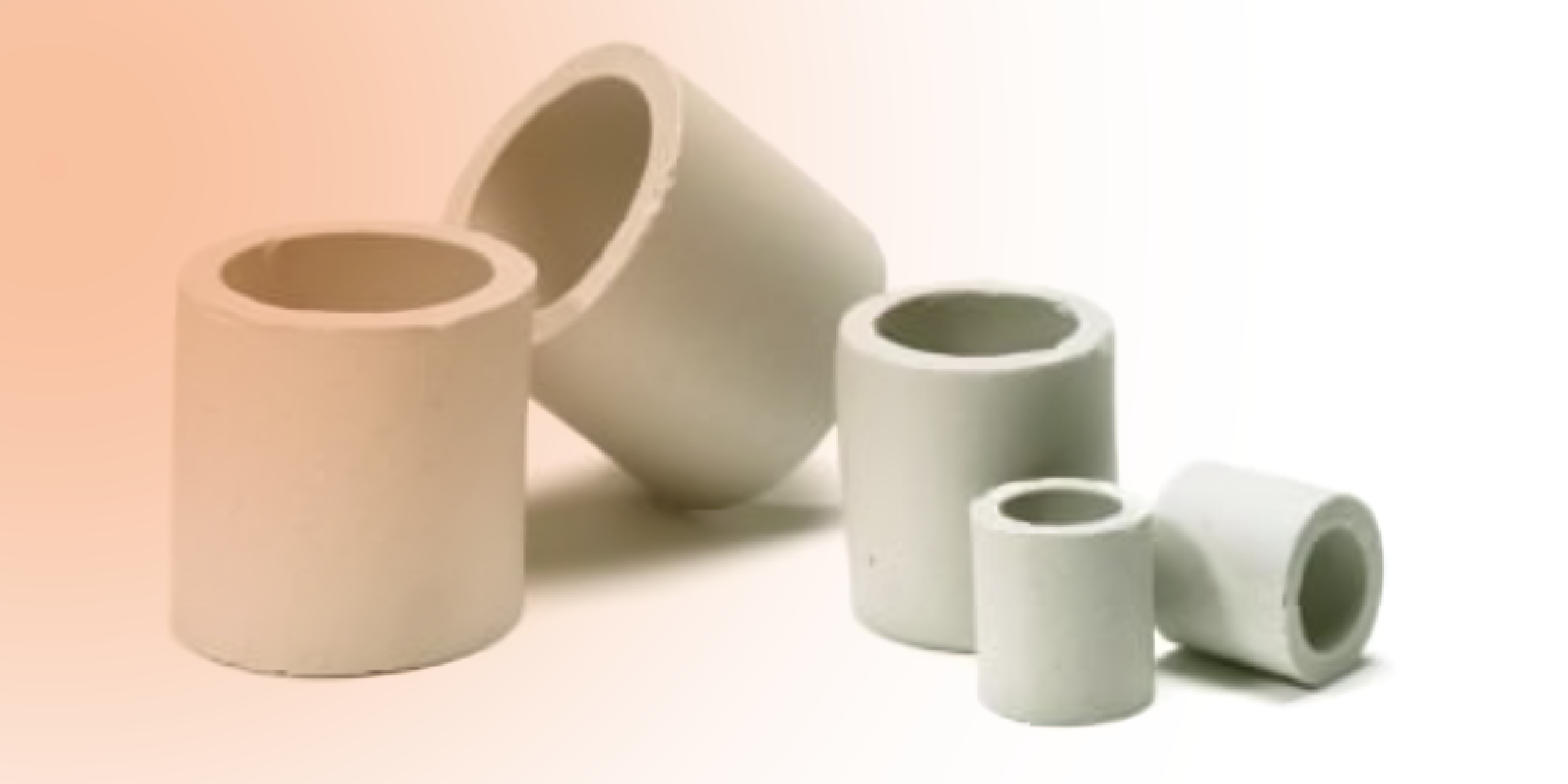

Raschig rings are a type of random packing material used in distillation columns to increase surface area for vapor-liquid contact. Typically made from materials like ceramic, metal, or plastic, these hollow, cylindrical shapes allow vapor to flow through while liquid flows over the surfaces, facilitating mass transfer.

Raschig rings are known for their simplicity and low cost. Despite their unassuming design, they are effective in numerous applications, especially for vapor-liquid separation in distillation, absorption, and stripping processes.

Key Benefits of Raschig Rings Packing

Raschig rings offer several advantages that make them a go-to solution in various distillation column applications. Let’s explore the key benefits:

1. High Efficiency in Mass Transfer

Raschig rings provide a large surface area for vapor-liquid contact, improving the mass transfer efficiency in distillation processes. This leads to better separation of components and higher purity of the end product.

Surface Area: The internal surface area of each ring ensures that there is ample contact between vapor and liquid, leading to efficient separation.
Low Resistance: Raschig rings are designed to minimize pressure drop, making them suitable for applications where low energy consumption is a priority.

2. Cost-Effective

Compared to more complex packing materials, Raschig rings packing is an economical option. They are relatively inexpensive to produce and maintain, making them an attractive choice for industries looking to optimize their operations without a high investment in specialized equipment.

Affordable Material: Available in a range of materials, including ceramic, metal, and plastic, Raschig rings cater to various operational and environmental conditions at an affordable cost.
Low Maintenance: Their simple design makes Raschig rings easy to clean and maintain, reducing downtime and maintenance costs.

3. Versatility

Raschig rings are versatile and can be used in a wide variety of applications, including distillation columns, absorption towers, stripping columns, and more. Whether you’re handling gases, liquids, or a combination of both, Raschig rings provide excellent performance across various industries.

Chemical Industry: Widely used for separating chemicals and solvents.
Petrochemical Industry: Ideal for distillation and absorption processes in the refining of petroleum products.
Pharmaceutical Industry: Employed for distillation processes to refine active ingredients.

4. High Durability

Raschig rings are durable and can withstand the rigors of continuous operation in harsh conditions. Ceramic Raschig rings, in particular, offer excellent chemical resistance and thermal stability.

Ceramic Raschig Rings: Ideal for high-temperature and corrosive environments, ceramic Raschig rings offer superior performance in processes involving aggressive chemicals.
Metal Raschig Rings: Often used in high-strength applications, these offer robustness and resistance to wear and tear.

5. Easy Installation

Raschig rings are easy to install and can be adapted to columns of various sizes and designs. Their simplicity in construction allows for faster packing and removal during maintenance, making them user-friendly and efficient for large-scale industrial operations.

Raschig Rings vs Pall Rings: Which Is Better?

While Raschig rings are widely used, it’s important to understand how they compare with other types of packing, such as Pall rings. Here’s a comparison to help you decide which is more suitable for your needs:

a. Raschig Rings vs Pall Rings: Design

Raschig Rings: These are simple, hollow cylinders that provide a relatively straightforward packing solution. Their design ensures liquid and vapor flow easily through the column.
Pall Rings: Pall rings, on the other hand, are a more advanced design. They have an enhanced surface area and flow dynamics due to their shape, which includes perforated holes and extensions.

b. Raschig Rings vs Pall Rings: Efficiency

Pall Rings: Generally, Pall rings offer higher efficiency compared to Raschig rings because of their more intricate design that facilitates better contact between vapor and liquid.
Raschig Rings: While less efficient than Pall rings, Raschig rings still provide good performance for many applications and are often chosen for their simplicity and lower cost.

c. Raschig Rings vs Pall Rings: Pressure Drop

Raschig Rings: Due to their design, Raschig rings typically have a slightly higher pressure drop compared to Pall rings, especially in larger columns.
Pall Rings: Pall rings are designed to minimize pressure drop while maintaining efficiency, making them ideal for processes where lower pressure drop is a priority.

d. Raschig Rings vs Pall Rings: Cost

Raschig Rings: More affordable and cost-effective compared to Pall rings, making them a better option for less demanding applications.
Pall Rings: Generally more expensive but worth the investment in high-performance systems that require precise control and high-efficiency separation.

Ceramic Raschig Rings: Ideal for Corrosive and High-Temperature Applications

One of the standout types of Raschig rings is ceramic Raschig rings. These are made from durable ceramic materials, such as alumina, which offer exceptional resistance to high temperatures and aggressive chemicals. Ceramic Raschig rings are particularly beneficial in processes where high thermal stability and chemical resistance are critical.

Corrosion Resistance: Ceramic Raschig rings are highly resistant to corrosion, making them ideal for use in acidic or basic solutions.
High Temperature Tolerance: Ceramic materials can withstand extreme temperatures, ensuring the column maintains its efficiency even in high-heat applications.

Pall Rings Use in Columns

Conclusion

Pall rings are another type of packing used in distillation columns, and while they offer certain advantages over Raschig rings, they come at a higher cost. Pall rings in column systems are used primarily for high-efficiency applications that require precise vapor-liquid contact and lower pressure drops. However, for many standard distillation processes, Raschig ring will remain a reliable and economical choice.

Raschig ring is a proven and cost-effective choice for many distillation processes. Their simplicity, efficiency, and low cost make them ideal for industries that need reliable performance without high investment in more complex packing materials.

Use Raschig rings packing when:

Budget constraints are a factor.
You need good mass transfer in standard distillation columns.
Your process involves mild conditions (not highly corrosive or high-temperature environments).

If you require higher efficiency, lower pressure drop, or more specialized applications, consider Pall rings or other advanced packing types.

FAQ'S

What are the advantages of ceramic Raschig rings?

Ceramic Raschig rings offer excellent corrosion resistance and high temperature tolerance, making them ideal for aggressive chemicals and high-heat applications.

Are Raschig rings easy to maintain?

Yes, Raschig rings are easy to install and maintain due to their simple design, which makes them a user-friendly option for industrial systems.

What industries use Raschig rings?

Raschig rings are used in a variety of industries, including chemical, petrochemical, and pharmaceutical industries, for applications like distillation, absorption, and stripping.

Can tray columns handle high liquid rates?

While Pall rings offer higher efficiency and lower pressure drop, they are more expensive than Raschig rings, which provide a more economical option for many distillation processes.
