Understanding Column Tray Types and Functions for Optimizing Distillation Efficiency

Distillation is a crucial separation process in industries like chemical manufacturing, petroleum refining, and pharmaceuticals. One of the key components of a distillation column is the tray, which plays a pivotal role in the vapor-liquid interaction. Different trays in distillation columns are designed to enhance efficiency, with varying features suited for specific operational conditions. This guide will walk you through the types of trays in distillation columns and their functions, helping you choose the right tray type to optimize your distillation process.

Types of Trays in Distillation Columns

Distillation trays allow for the transfer of mass and heat between rising vapor and descending liquid. Understanding the distillation tray types will help in selecting the one that fits your operational needs.

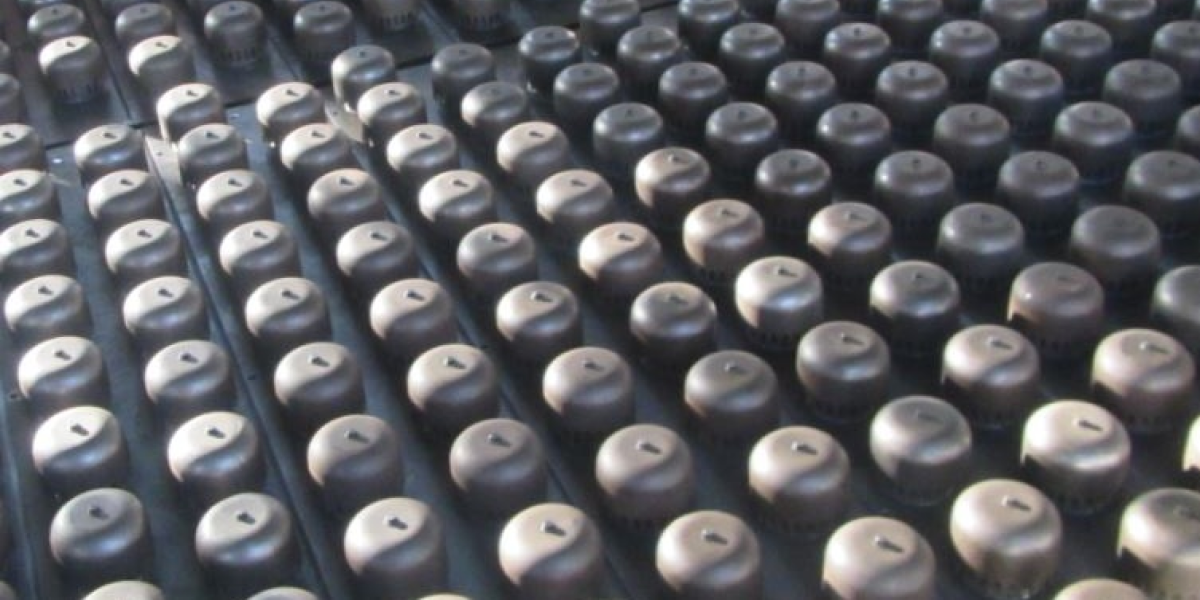

1. Bubble Cap Tray

One of the most traditional types of trays, bubble cap trays consist of caps placed over riser tubes. As the vapor rises through the liquid on the tray, it is forced through slots in the cap, creating bubbles that enhance vapor-liquid contact.

Key Features:

High efficiency at low liquid rates.
Reliable performance under vacuum conditions.
Long-lasting and durable design.

Bubble cap trays are ideal for vacuum distillation and applications requiring precise control of vapor-liquid interaction.

2. Valve Tray

Valve trays use movable valves to regulate the flow of vapor through the tray. These trays offer higher flexibility and efficiency over a broader range of operating conditions compared to bubble cap trays.

Key Features:

Self-regulating valve mechanisms.
Low-pressure drop.
High capacity and efficiency.

Valve trays are suitable for applications where operational flexibility is critical and energy savings are desired.

3. Sieve Tray

Sieve trays are the simplest design, consisting of perforated metal plates through which vapor rises. These trays are highly efficient under high vapor flow conditions and are widely used in various industries.

Key Features:

Simple design with low maintenance costs.
High vapor handling capacity.
Cost-effective solution for large columns.

Sieve trays are typically used in large-scale distillation processes, particularly in refineries and chemical plants.

4. Chimney Tray

Chimney trays are specialized trays designed to collect liquid from a certain section of the column and redistribute it to another section, usually without any mass transfer between the vapor and liquid phases.

Key Features:

Used for liquid collection and redistribution.
No vapor-liquid interaction occurs on these trays.
Common in columns requiring multiple feed or draw-off points.

Chimney trays play an important role in ensuring efficient liquid management in complex distillation setups.

Choosing the Right Column Tray Type

Selecting the right column tray type depends on several factors, including the operational conditions, column size, and desired efficiency. Here’s how you can decide which tray is best for your distillation process:

Consider the following:

Operating Pressure: For vacuum distillation, bubble cap trays offer stability, while sieve trays work well in high-pressure environments.
Vapor-Liquid Ratio: Valve trays provide more flexibility in handling different vapor-liquid ratios, making them suitable for varied operational ranges.
Maintenance Requirements: Sieve trays are simple and cost-effective but may require more frequent cleaning compared to bubble cap or valve trays.

By evaluating your specific process needs, you can choose a tray type that enhances the efficiency and throughput of your distillation column.

Importance of Tray Design in Distillation Columns

The design of trays significantly impacts the overall performance of the distillation column. Properly selected and installed distillation trays optimize vapor-liquid contact, reduce pressure drop, and improve separation efficiency, resulting in cost savings and better process control.

Benefits of Optimized Tray Selection:

Increased Separation Efficiency: Effective vapor-liquid interaction maximizes component separation.
Energy Savings: Lower pressure drops and better heat exchange reduce energy consumption.
Reduced Downtime: Reliable tray designs minimize maintenance needs and operational disruptions.

With the right tray design, your distillation column can achieve optimal performance, translating to lower operational costs and higher product quality.

Conclusion

Optimizing your distillation process begins with selecting the appropriate tray type for your column. Whether you need high efficiency with bubble cap trays, operational flexibility with valve trays, or simplicity with sieve trays, choosing the right option ensures maximum performance. For expert advice on selecting and installing trays for your distillation column, contact us today for tailored solutions.

FAQ'S

What are the key differences between valve trays and bubble cap trays?

Valve trays provide higher flexibility and efficiency with lower pressure drops, while bubble cap trays are more durable and suitable for vacuum distillation and low liquid flow rates.

How do chimney trays function in distillation columns?

Chimney trays collect liquid from one section of the column and redistribute it to another, without vapor-liquid interaction. They are essential for liquid management in columns with multiple feeds or draw-offs.

Which tray type is most cost-effective for large-scale distillation processes?

Sieve trays are typically the most cost-effective due to their simple design and high vapor handling capacity, making them ideal for large industrial distillation processes.
