How to Choose the Right Refinery Column Tray Types for Your Process?

Q: What are the most common refinery column tray types?

Sieve trays , valve trays , and bubble cap trays are the most common types used in refinery columns .

Q: How do sieve trays differ from bubble cap trays in refinery columns?

Sieve trays are simpler, cost-effective, and easier to maintain, while bubble cap trays offer higher separation efficiency but require more maintenance.

Q: What factors should I consider when choosing a tray column type?

Consider factors like process requirements , flow rates , pressure and temperature conditions , and the maintenance needs of each tray type.

Q: How does tray column maintenance vary by tray type?

Sieve trays are easier to maintain, while bubble cap trays require more frequent inspections and cleaning due to their more complex design.

Q: Are packed columns better than tray columns for all applications?

No, packed columns are better for high-flow, low-pressure systems, while tray columns are preferred for applications requiring high separation efficiency .

We will go over the many varieties of refinery column trays, their salient characteristics, and how to pick the ideal one for your particular operation in this blog. The efficiency and maintenance expenses of your system can be significantly impacted by the type of tray you choose, regardless of whether you’re working with high-pressure systems, corrosive chemicals, or high flow rates.

Achieving a high mass transfer efficiency is essential for efficient separation in sectors including gas separation, oil refining, and chemical processing. The type of refinery column tray utilised in the operation is one of the most important elements affecting this efficiency. In distillation and separation procedures, refinery column trays are crucial parts that guarantee the best possible liquid-gas interaction and separation effectiveness.

What Are Refinery Column Tray Types?

Refinery column trays are components that encourage the interaction of liquids and gases during the separation process in distillation columns. By offering a sizable surface area for mass transfer, they enable the gas and liquid to mix and separate in accordance with their unique characteristics. The tray’s design guarantees even liquid dispersion and effective gas flow throughout the column.

Depending on the design and operating conditions, there are various types of trays. Maintenance requirements, pressure drop, and capacity are all impacted by the tray selection. Optimising the performance of your column can be achieved by being aware of the different sorts of trays that are available.

Popular Refinery Column Tray Types

Sieve Trays:
Sieve trays are the simplest kind of tray columns and are frequently utilised in applications requiring minimal pressure. The perforated sheet in these trays lets gas flow through the liquid. For uses where high-efficiency separation is not a top concern, sieve trays provide an affordable and straightforward design.
Valve Trays:
Valve trays are perfect for situations involving medium to high pressure. These trays feature valve apertures that let liquid pass through, bringing the liquid and gas into closer contact. When it comes to managing greater liquid flow rates and sustaining effectiveness under a range of operating circumstances, this kind of tray offers greater flexibility.

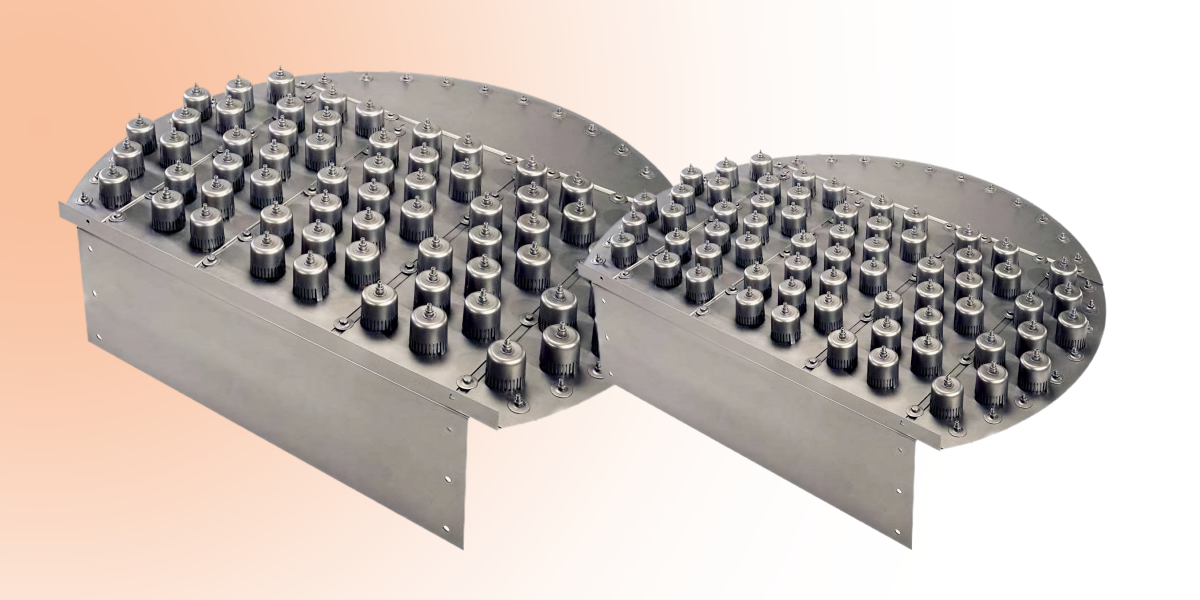

Bubble Cap Trays:
Bubble cap trays are made for applications requiring great capacity and optimal mass transfer efficiency. The trays’ bubble caps maximise gas-liquid interaction by producing a bubbling movement. Bubble cap trays are commonly employed in systems with high liquid flows where separation efficiency is crucial.
Dual Flow Trays:
Dual-flow trays are frequently seen in columns with a large capacity. By enabling multidirectional gas and liquid movement, these trays increase the effectiveness of mass transfer. They are frequently employed in high-volume extraction and distillation procedures where effective handling of both liquid and gas phases is required.

Column Tray Types vs Packed Column

Even while tray columns are frequently employed in separation and distillation procedures, they aren’t always the ideal option for all situations. Tray columns and packed columns are contrasted here:

Tray Columns:
For managing substantial amounts of liquid and gas, tray columns provide exceptional capacity and efficiency. They are excellent at managing liquid-gas separation in multi-component systems and are generally chosen in procedures requiring high pressure or capacity.
Packed Columns:
When low pressure drop and high capacity are the top concerns, packed columns are frequently utilised. They work best in low-pressure, high-flow systems. Materials such as metal rings or ceramics are used in packed columns to create surface area for mass transfer. In some situations, they are more energy-efficient and easier to maintain than tray columns, despite their lower separation efficiency.

When to Use Tray Columns:

If your process calls for high liquid-gas flow rates, great separation efficiency, or the capacity to manage pressure changes, use tray columns.

When to Use Packed Columns:
When energy efficiency is a top concern or high-throughput applications require low pressure, use packed columns.

Factors to Consider When Choosing the Right Tray Types for Your Refinery Column

Process Requirements:
Your process’s separation requirements should be taken into account first. Sieve trays, for instance, can be adequate for straightforward separations, but bubble cap trays would be required for more intricate separations that call for more efficiency.
Flow Rate and Capacity:
Choosing the appropriate tray type requires an understanding of your system’s flow rate. Sieve trays work well for low-flow systems, whereas valve trays or dual flow trays are appropriate for high-flow systems.
Temperature and Pressure:
The system’s operational parameters, including temperature and pressure, will influence the type of tray that is selected. Sieve trays work well in lower-pressure situations, whereas valve trays are best in high-pressure settings.
Efficiency vs. Maintenance:
Efficiency and maintenance are frequently traded off. Although bubble cap trays are the most efficient, their intricacy can make maintenance more difficult. Conversely, sieve trays may be less efficient but are simpler to maintain.
Cost Factors:
Bubble cap trays can be more costly because of their intricate design, whereas sieve trays are more affordable. When choosing your tray type, take into account both the upfront and ongoing operating costs.

Refinery Column Tray Types Maintenance: How it Affects Longevity and Efficiency?

Tray Column Maintenance:
To guarantee long-term performance, refinery columns must receive proper maintenance. Compared to more intricate bubble cap trays, sieve trays are simpler to maintain and clean. Bubble cap trays, however, perform better in demanding situations.
Maintenance Advice:
To keep column trays operating efficiently, check them frequently for obstructions, damage, or fouling. To prevent system failure or inefficiency, make sure that any wear or clogging is fixed right away.
When to Replace Trays:
When deterioration is noticed, such as corrosion or cracking, or when a tray no longer offers the required separation efficiency, it should be changed.

Conclusion

In many industrial operations, selecting the appropriate refinery column tray type is essential to obtaining the best separation efficiency. Understanding the benefits and drawbacks of each tray type is crucial, regardless of whether you are working with high-pressure systems, high-flow applications, or energy efficiency issues. You can make sure you select the best tray type for your refinery column and enhance process performance by taking into account flow rates, pressure conditions, maintenance requirements, and cost.

FAQ'S

What are the most common refinery column tray types?

Sieve trays, valve trays, and bubble cap trays are the most common types used in refinery columns.

How do sieve trays differ from bubble cap trays in refinery columns?

Sieve trays are simpler, cost-effective, and easier to maintain, while bubble cap trays offer higher separation efficiency but require more maintenance.

What factors should I consider when choosing a tray column type?

Consider factors like process requirements, flow rates, pressure and temperature conditions, and the maintenance needs of each tray type.

How does tray column maintenance vary by tray type?

Sieve trays are easier to maintain, while bubble cap trays require more frequent inspections and cleaning due to their more complex design.

Are packed columns better than tray columns for all applications?

No, packed columns are better for high-flow, low-pressure systems, while tray columns are preferred for applications requiring high separation efficiency.
