Distillation Column Packing Types: Which One Fits Your Needs?

Q: What is the primary difference between structured and random packing?

Structured packing offers higher efficiency and lower pressure drop, while random packing is less efficient but more cost-effective.

Q: Can tray columns handle high liquid rates?

Yes, sieve trays in tray-type columns are well-suited for high liquid flow systems, offering a balance of efficiency and simplicity.

When it comes to distillation column packing types, the type of packing you choose plays a crucial role in the separation efficiency, pressure drop, and operational costs. The right packing can significantly improve the performance of your distillation process, whether you’re separating chemicals, refining petroleum, or purifying gases.

What Is Distillation Column Packing?

Distillation columns are used in industrial settings to separate mixtures based on differences in boiling points. They contain packing materials that provide surface area for vapor-liquid contact. The choice of packing influences mass transfer efficiency, pressure drop, and liquid hold-up within the column.

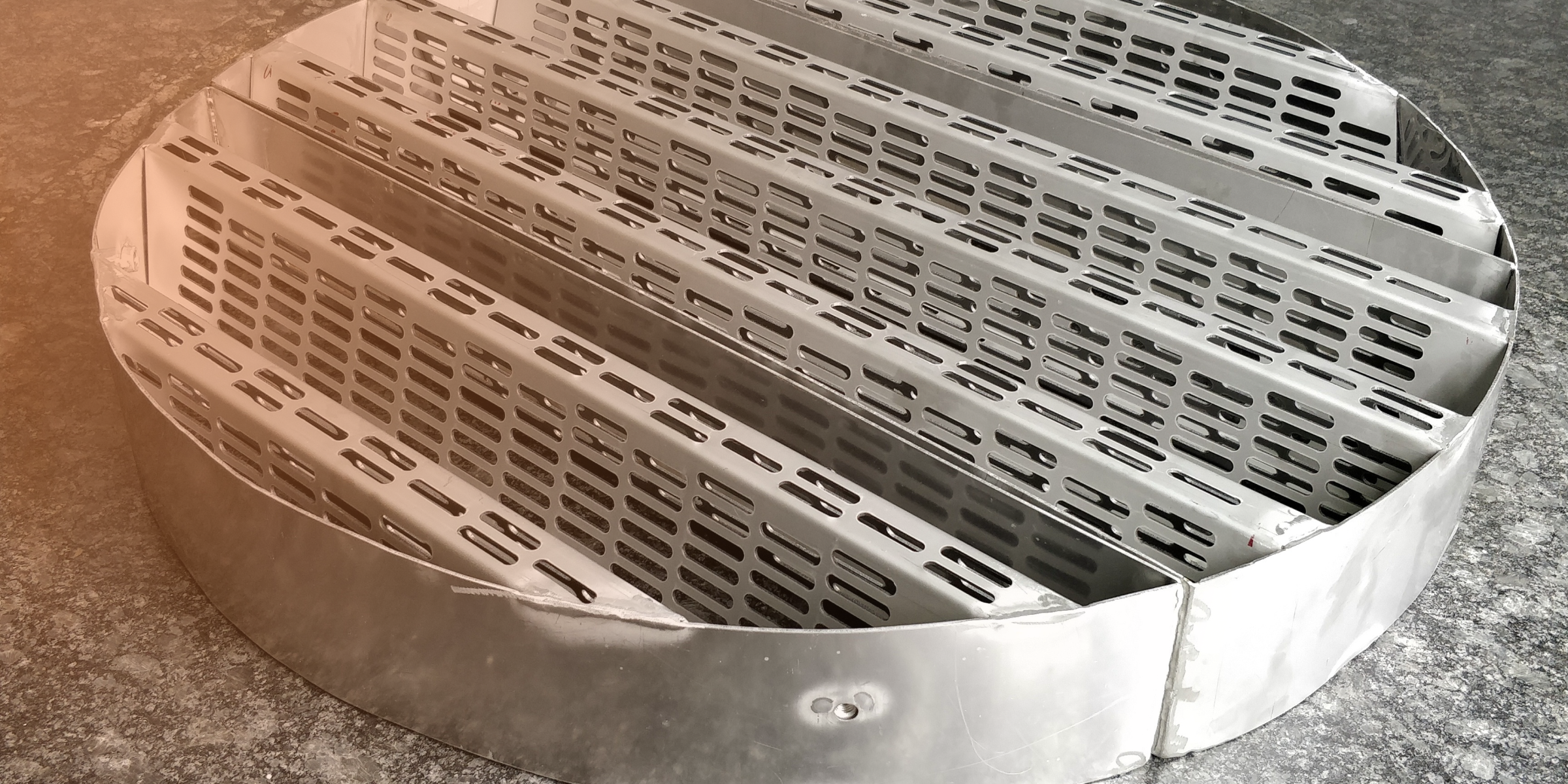

Distillation Column Packing Types

There are two main categories of packing materials used in distillation columns: structured packing and random packing. Let’s break down the various options under each category.

1. Structured Packing

Structured packing refers to materials designed in a specific pattern to provide high surface area for vapor-liquid interaction. These packings are designed to maximize contact between the phases and minimize resistance to flow. Some common types include:

a. Metal Structured Packing

Made of metals such as stainless steel or alloys.
Commonly used in high-temperature applications like petroleum refining and chemical processing.
Advantages: High efficiency, low pressure drop, and good mechanical strength.
Disadvantages: Higher cost compared to random packing.

b. Plastic Structured Packing

Made from materials like polypropylene or PTFE (Teflon).
Advantages: Lightweight and resistant to corrosion, making them suitable for applications where chemical resistance is critical.
Disadvantages: Less durable than metal packings at high temperatures.

c. Ceramic Structured Packing

Made from ceramics, often used in highly corrosive environments.
Advantages: Excellent chemical resistance and thermal stability.
Disadvantages: Fragility and potential for breakage under mechanical stress.

2. Random Packing

Random packing consists of irregularly shaped materials (such as metal, plastic, or ceramic) that are randomly packed into the column. These packings provide a large surface area but do not have a structured arrangement like their counterparts.

a. Metal Random Packing

Commonly made from stainless steel or other corrosion-resistant alloys.
Advantages: Cost-effective and capable of handling large volumes.
Disadvantages: Higher pressure drop compared to structured packing, especially in columns with low vapor flow rates.

b. Plastic Random Packing

Typically made from materials such as polyethylene or polypropylene.
Advantages: Lightweight and inexpensive.
Disadvantages: Less efficient in terms of vapor-liquid contact, leading to higher energy consumption.

c. Ceramic Random Packing

Made from ceramics like alumina or silica.
Advantages: High thermal stability and resistance to corrosive environments.
Disadvantages: Fragile and can break under mechanical stress.

3. Tray-Type Distillation Column

In a tray-type distillation column, the column is divided into several levels, each containing a tray or a perforated plate where vapor rises and liquid descends. The trays allow for efficient mass transfer between the vapor and liquid phases. Types of trays commonly used include:

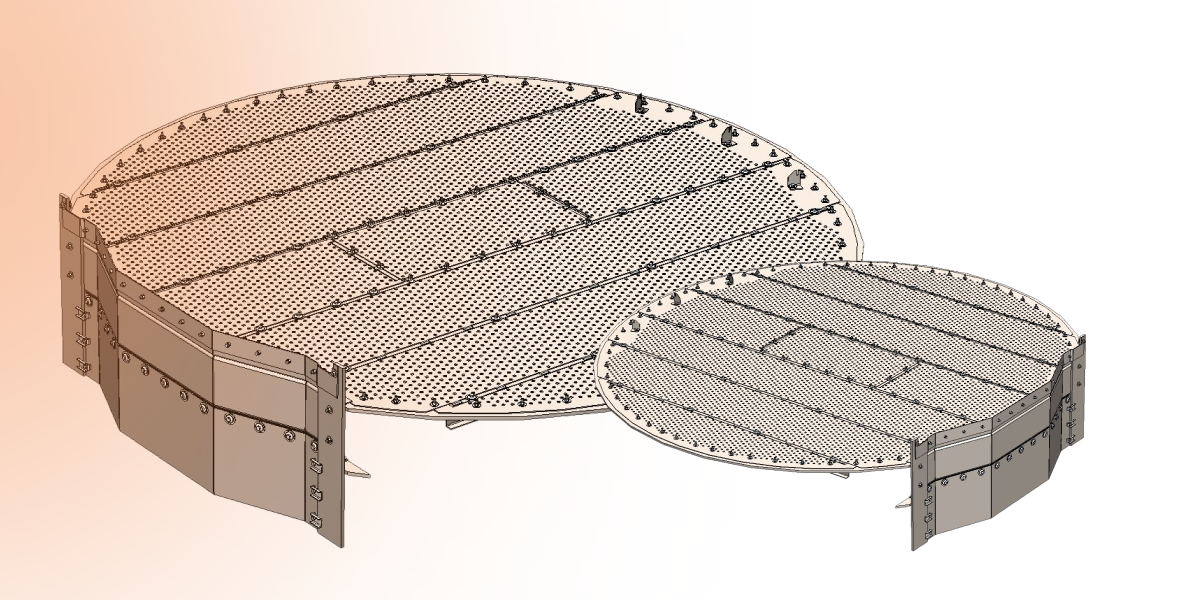

a. Sieve Tray

Perforated tray with uniform holes that allow vapor to pass through.
Advantages: Simple design, low cost, and suitable for systems with high liquid rates.
Disadvantages: Less efficient in low vapor flow systems compared to other trays.

b. Valve Tray

Equipped with valves that open and close depending on the vapor flow rate, providing better control over vapor-liquid contact.
Advantages: Excellent for low flow rates and precise control.
Disadvantages: Higher cost and maintenance compared to sieve trays.

c. Bubble Cap Tray

Features caps that cover perforated holes, forcing the vapor to bubble through the liquid. These are the most efficient at low vapor flow rates.
Advantages: High efficiency for complex separations.
Disadvantages: Higher pressure drop and more difficult to maintain.

How to Choose the Right Distillation Column Packing Types for Your Needs?

Choosing the right distillation column packing types is always between structured packing, random packing, and tray-type columns, which depends on several factors, including:

Separation Efficiency
- Structured packing generally provides better efficiency and can handle high vapor and liquid flow rates with minimal pressure drop.
- Random packing is less efficient but might be suitable for less demanding processes.
- Tray columns work well for complex separations but have a higher pressure drop.
Pressure Drop
- Structured packing offers low pressure drop compared to random packing and tray columns, making it ideal for energy-efficient processes.
- Random packing and tray columns can experience higher pressure drops, especially in larger columns.
Temperature and Corrosion Resistance
- If you’re working with high temperatures or corrosive materials, structured packing made of metals or ceramics is a better option.
- For less demanding environments, plastic or metal random packings may suffice.
Cost Considerations
- Random packing is generally more cost-effective than structured packing and tray-type columns.
- Tray columns tend to be more expensive due to their design and maintenance needs.

When to Use Tray-Type Distillation Columns

Tray-type distillation columns are ideal when the separation process requires precise control over the vapor-liquid contact, especially in applications with:

Low vapor flow rates: Valve and bubble cap trays are better suited for this condition.
High liquid flow rates: Sieve trays are more effective when dealing with systems requiring higher liquid throughput.

Conclusion

The choice between distillation column packing types and tray-type columns ultimately depends on your specific process requirements. If you’re looking for high efficiency and low pressure drop, structured packing is often the best choice, especially in high-volume applications. However, if cost is a significant factor and you’re dealing with less demanding systems, random packing or tray columns may be more appropriate.

For industries like chemical processing, petrochemical refining, and pharmaceuticals, selecting the right packing material ensures that your distillation process operates efficiently, safely, and cost-effectively. Always evaluate the flow rates, temperature conditions, and separation requirements before deciding on the packing type.

FAQ'S

What is the primary difference between structured and random packing?

Structured packing offers higher efficiency and lower pressure drop, while random packing is less efficient but more cost-effective.

What are the advantages of tray-type distillation columns?

Tray columns provide excellent control over the vapor-liquid contact and are ideal for complex separations and systems with low vapor flow rates.

How does the packing material affect the distillation process?

The type of packing influences efficiency, pressure drop, and energy consumption. Structured packing provides better separation efficiency and lower energy costs.

Can tray columns handle high liquid rates?

Yes, sieve trays in tray-type columns are well-suited for high liquid flow systems, offering a balance of efficiency and simplicity.
