How Extraction Columns Enhance Chemical Separation?

Q: What industries benefit most from extraction columns?

Extraction columns are essential in industries such as petrochemical , pharmaceutical , food processing , and water treatment .

In the world of chemical engineering, extraction columns are crucial components used to separate chemical compounds in mixtures. These columns utilize the liquid-liquid extraction process to isolate specific substances, whether for refining, purifying, or concentrating a particular compound. Extraction columns are especially important in industries such as petrochemicals, pharmaceuticals, food processing, and environmental management, where precise separation is essential for product quality and efficiency.

What Is an Extraction Column?

An extraction column is a type of equipment used for separating compounds from a mixture based on their differences in solubility between two immiscible liquids. The liquid-liquid extraction column facilitates the contact between the liquid mixture and an extracting solvent, allowing components to be selectively transferred from one phase to another.

The separation process typically occurs through repeated contact between the phases, allowing for multiple stages of extraction, which ultimately increases the purity of the extracted compounds.

The Working Principle of Extraction Columns

The working principle of an extraction column revolves around liquid-liquid extraction, a separation technique based on differences in solubility. Here’s a step-by-step breakdown of how extraction columns work:

Phase Contact: The mixture to be separated is fed into the extraction column, where it comes into contact with a second immiscible liquid (usually called the solvent). This solvent is selected to preferentially dissolve the target component from the mixture.
Mass Transfer: The components in the mixture are transferred into the solvent phase based on their differential solubility. Some components in the mixture will dissolve more readily in the solvent, while others remain in the original phase.
Countercurrent Flow: Often, the two phases (the mixture and solvent) flow in opposite directions through the column. This countercurrent flow enhances the separation efficiency as the liquid phases interact multiple times, allowing for better mass transfer.
Separation: After the phases have been sufficiently mixed and the target compounds have been transferred to the solvent, the separated phases are removed from the column, with the target substance often concentrated in the solvent phase.
Recovery: The solvent, which now contains the extracted components, is typically sent to a recovery stage where the components are isolated and the solvent is recycled for further use.

Types of Extraction Columns

There are several different types of extraction columns, each designed for specific applications and separation requirements. Below are some common types:

1. Packed Column

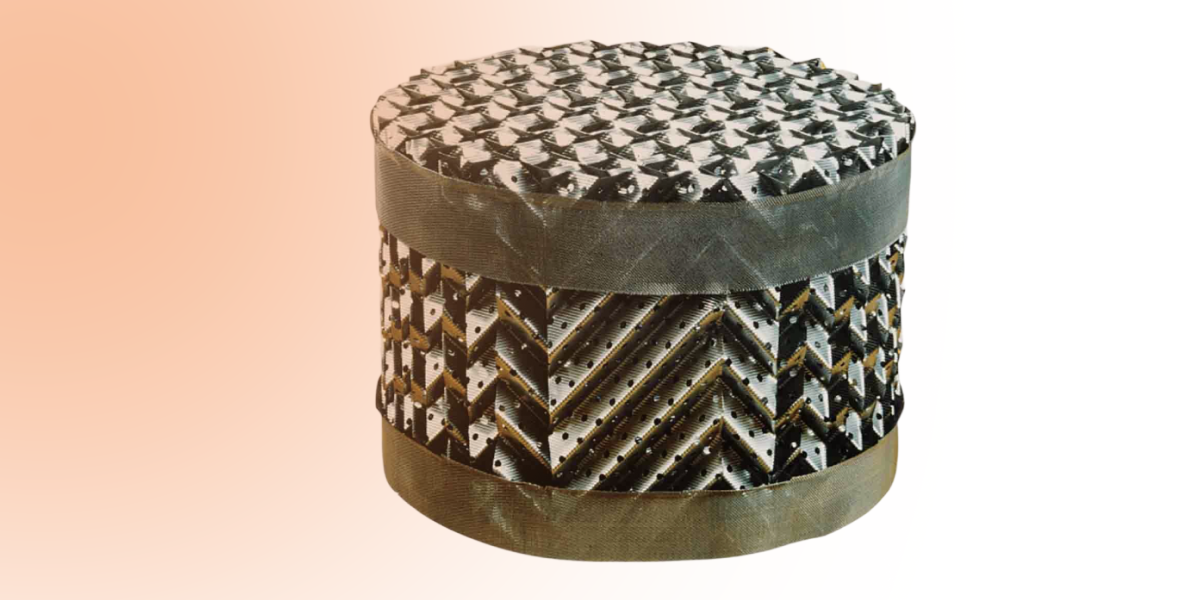

A packed column is filled with packing material that provides surface area for mass transfer. This packing can be made from a variety of materials, including metal, ceramic, or plastic, and it helps to promote efficient contact between the two liquid phases.

Advantages: Offers a large surface area for extraction and is ideal for continuous operation.
Applications: Commonly used in petrochemical refining, pharmaceutical manufacturing, and water treatment.

2. Tray Column

A tray column consists of multiple perforated trays or plates stacked on top of one another. Each tray provides a platform for vapor and liquid to come into contact, facilitating the extraction process.

Advantages: Good for handling large volumes of liquid and providing easy operation and maintenance.
Applications: Often used for large-scale liquid-liquid extraction processes, such as in chemical refineries and pharmaceutical separations.

3. Coiled or Spiral Columns

In coiled columns, the liquid flows through a spiral or helical path, providing additional surface area for the mass transfer process. These columns are typically used for processes where space is constrained.

Advantages: Efficient for small-scale applications and continuous operation.
Applications: Often found in food processing and highly specialized chemical separation processes.

Benefits of Extraction Columns in Chemical Separation

Extraction columns play an essential role in improving the efficiency, selectivity, and sustainability of chemical separation processes. Here are the key benefits of using extraction columns in industrial settings:

1. High Separation Efficiency

One of the primary advantages of using extraction columns is their ability to achieve high separation efficiency. By utilizing countercurrent flow and multiple stages of contact, extraction columns can separate chemical compounds with high precision, resulting in pure product recovery.

2. Scalability

Extraction columns are scalable, meaning they can be designed for small-scale laboratory work or large-scale industrial processes. This flexibility makes them suitable for a wide range of applications across various industries, including chemical processing, pharmaceuticals, and food production.

3. Selective Separation

The column extraction method enables selective separation of compounds based on their solubility. This selective transfer into the solvent phase is particularly useful in applications where only specific compounds need to be extracted, such as in fine chemical production or biochemical separations.

4. Energy Efficiency

Compared to other separation methods, such as distillation, extraction columns often require less energy, making them more cost-effective in the long run. The ability to recycle solvents further enhances the overall energy efficiency of the process.

5. Environmental Benefits

Since liquid-liquid extraction columns can be designed to use non-toxic or eco-friendly solvents, they are an environmentally sustainable choice. Additionally, the ability to recover solvents and re-use them reduces waste and chemical consumption.

Liquid-Liquid Extraction Columns: A Deeper Dive

Liquid-liquid extraction columns are the most commonly used type in industrial separation. This method works by introducing an immiscible solvent into the column, where it contacts the feed liquid. Components with a higher solubility in the solvent phase will migrate into it, leaving the less soluble components in the original phase. Here’s why liquid-liquid extraction columns are so effective:

Selective Partitioning: Liquid-liquid extraction allows for selective partitioning, meaning only the target components are extracted.
Effective for Complex Mixtures: This process is ideal for mixtures with components that have similar boiling points or when distillation is impractical due to high energy costs.
Solvent Recovery: After extraction, solvents are typically separated and recycled, reducing waste and making the process more sustainable.

Applications of Extraction Columns

Extraction columns are used in a wide range of industries, where efficient chemical separation is necessary:

Petrochemical Industry: For separating valuable chemicals from crude oil and natural gas.
Pharmaceutical Industry: To purify active pharmaceutical ingredients (APIs) and separate impurities.
Food and Beverage: For the extraction of flavors, oils, and vitamins.
Water Treatment: For the removal of contaminants from water using solvent extraction methods.

Conclusion

Extraction columns are indispensable for a variety of industrial processes that require precise chemical separation. Whether you’re involved in petrochemical refining, pharmaceutical manufacturing, or water treatment, extraction columns offer an efficient, scalable, and eco-friendly solution to achieve high-quality separations.

By understanding the working principle, types of extraction columns, and their benefits, you can make an informed decision about incorporating them into your chemical separation processes. Their efficiency, sustainability, and versatility make them a crucial part of modern industrial systems.

FAQ'S

What is the basic principle behind liquid-liquid extraction?

Liquid-liquid extraction involves two immiscible liquids, where one phase selectively absorbs specific components from the other based on their solubility.

How does an extraction column differ from other separation methods?

Extraction columns rely on solubility differences to separate compounds, while other methods, like distillation, depend on boiling point differences.

What industries benefit most from extraction columns?

Extraction columns are essential in industries such as petrochemical, pharmaceutical, food processing, and water treatment.

Can extraction columns be used for large-scale production?

Yes, extraction columns are highly scalable and can be used for both small laboratory processes and large industrial operations.
