Sieve Tray Column: How It Works and Enhances Separation?

When it comes to industrial distillation processes, choosing the right type of column tray can make all the difference in terms of efficiency and separation quality. Sieve tray columns are one of the most commonly used distillation column internals, offering high efficiency in separating vapor and liquid phases.

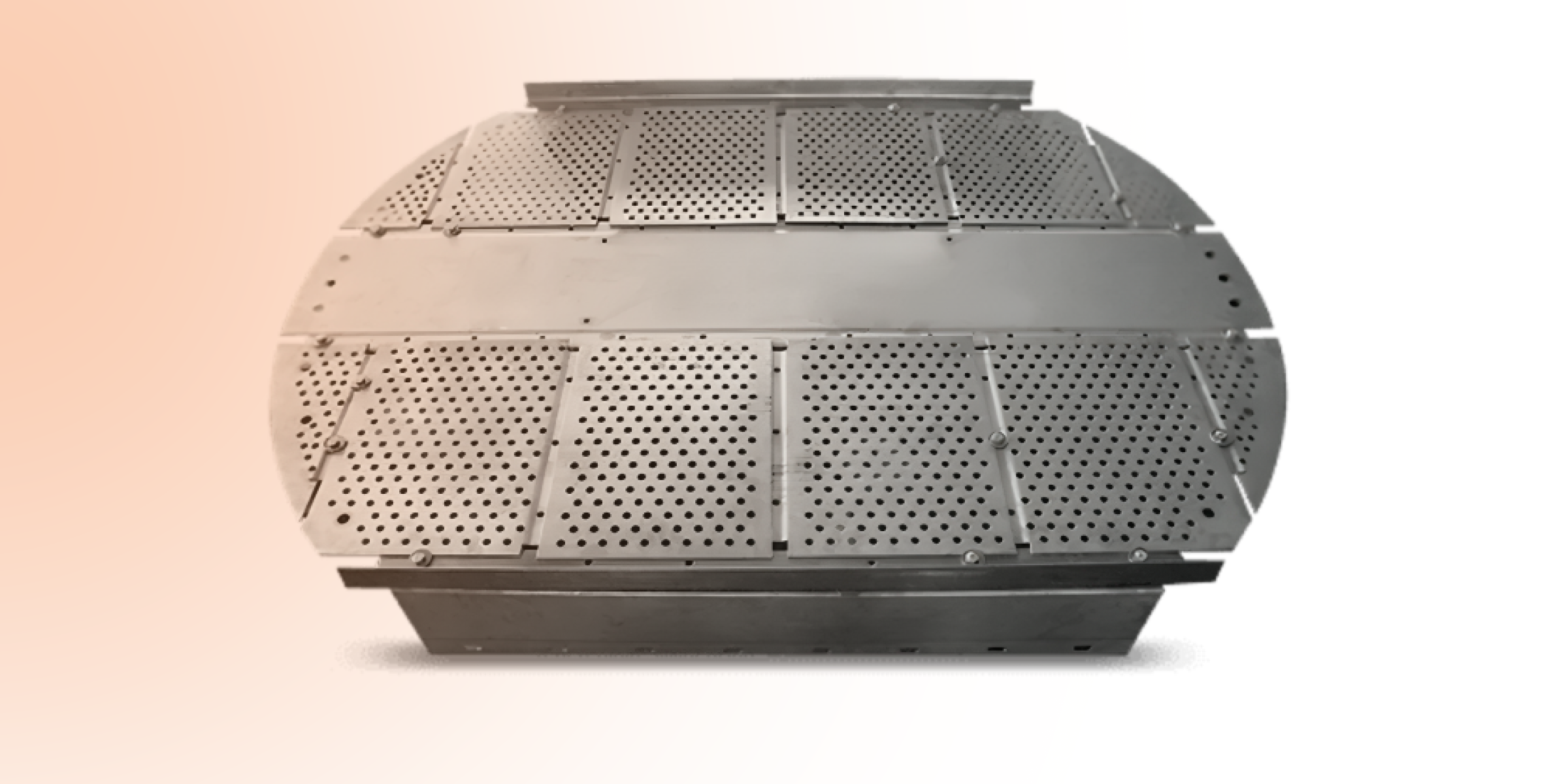

What Is a Sieve Tray Column?

A sieve tray column is a type of mass transfer device used in distillation, designed to separate components in a mixture based on their boiling points. It contains perforated trays (also known as sieve trays) where liquid flows over perforations, while vapor rises through the holes, facilitating a contact between the phases. The key here is maximizing the contact area between vapor and liquid to enhance mass transfer.

Sieve trays are relatively simple in design, but they offer an effective solution for distillation processes in industries such as petrochemical, chemical, and food processing.

How Does a Sieve Tray Column Work?

The sieve trays are a flat, perforated plate with holes of specific sizes. These perforations allow vapor to rise from one tray to the next, while liquid moves across the tray’s surface. Here’s a step-by-step breakdown of how the sieve tray column operates:

Vapor Upflow: Vapor enters the bottom of the column and moves upward through perforations in each tray.
Liquid Downflow: The liquid is collected on top of each tray and flows downward to the tray below.
Phase Contact: As vapor rises and liquid descends, the two phases come into contact, enhancing mass transfer between the two and allowing separation of the components.
Separation: As the vapour moves upward and the liquid moves downward, each tray allows for partial separation based on the differences in boiling points.

Sieve Tray vs Valve Tray: Which One to Choose?

When comparing sieve trays with valve trays, the main difference lies in the design of the tray. Valve trays feature a set of valves or caps that open and close based on vapor flow, providing more flexibility than sieve trays.

Sieve Tray: Offers better performance in applications where high liquid throughput is needed. The simpler design leads to lower pressure drop and easier maintenance.
Valve Tray: More suited for systems requiring high efficiency at lower liquid flow rates. The variable opening of valves allows for better control over the vapor flow.

While valve trays may offer higher efficiency under specific conditions, sieve trays are often the go-to choice for systems with high liquid rates due to their simple design and low maintenance requirements.

Key Advantages of Sieve Tray Columns

Sieve tray columns come with several benefits that make them an attractive option for a wide range of distillation processes. Here are the primary advantages:

High Efficiency: Due to the simple perforated design, sieve trays offer excellent mass transfer capabilities, resulting in high separation efficiency.
Low Pressure Drop: The perforations allow for the free flow of vapor, minimizing the pressure drop across the column.
Cost-Effective: Sieve trays are typically cheaper to manufacture and maintain compared to more complex tray designs like valve trays.
Easy Maintenance: Their simple design also translates to easier maintenance and cleaning, especially in systems with fewer fouling problems.
Versatility: Sieve trays are versatile and can be used in a variety of industries, such as the petrochemical, chemical, and pharmaceutical industries.

Understanding Sieve Mesh Size

The sieve mesh size plays a crucial role in determining the performance of a sieve tray column. The size of the holes in the tray (sieve mesh size) affects the vapor-liquid contact, which directly impacts the efficiency of separation.

Larger Holes: Larger perforations may lead to lower mass transfer rates but can handle higher liquid flow rates.
Smaller Holes: Smaller holes provide better separation but may increase the pressure drop.

Selecting the right sieve mesh size is essential to optimize the performance of the sieve tray column and to ensure it meets the desired separation efficiency.

When to Use a Sieve Tray Column

Sieve trays are ideal for applications where a high throughput of liquid and vapor is expected. These columns work best in situations where:

High vapor flow rates are present.
The separation of easily separable components is required.
The system operates under conditions where lower pressure drops are crucial.
Simple maintenance is preferred without sacrificing efficiency.

In applications such as fractional distillation, the high liquid and vapor throughput makes sieve tray columns highly effective for large-scale separations.

Conclusion

In summary, sieve tray columns provide an excellent solution for distillation processes where efficient phase separation is required. With their simple design, low pressure drop, and high efficiency, sieve trays are a reliable and cost-effective option in many industries.

By carefully selecting the right sieve mesh size and understanding the advantages over other tray types like valve trays, you can optimize your distillation process to achieve better results with minimal maintenance. Whether you’re in the petrochemical, chemical, or pharmaceutical industry, sieve tray columns remain an indispensable part of the distillation process.

If you’re considering upgrading your separation systems, sieve tray columns should be at the top of your list!

FAQ'S

What is the difference between sieve trays and valve trays

Sieve trays have simple perforations allowing vapor to pass through, while valve trays use adjustable valves to control vapor flow for better control in specific conditions.

What industries benefit most from sieve tray columns?

Petrochemical, chemical, and pharmaceutical industries benefit from sieve tray columns, particularly in distillation processes involving high liquid and vapor throughput.

How do sieve mesh sizes affect performance?

Larger holes accommodate higher liquid flow rates but offer lower separation efficiency, while smaller holes enhance separation but may increase the pressure drop.

Are sieve trays easy to maintain?

Yes, the simple design of sieve trays makes them easier to maintain and clean compared to more complex tray designs like valve trays.
