Mist Eliminators: How They Work in Oil and Gas Filtration

Q: Where are mist eliminators commonly used?

Mist eliminators are used in industries like oil and gas , chemical processing , and power plants to remove mist from gases in compressor systems, turbines, and separators.

In industries like oil and gas, chemical processing, and power generation, maintaining the purity of gases and liquids is crucial for efficient operations. Mist eliminators are essential components in filtration systems designed to remove liquid droplets, aerosols, or mist from gases, protecting equipment and improving air quality.

What Is a Mist Eliminator?

A mist eliminator is a device used to separate liquid droplets from a gas stream. These droplets, typically formed during industrial processes like distillation or compression, can cause damage to equipment, clog filters, and reduce system efficiency. Mist eliminators help ensure that these droplets are captured and removed, preventing contamination and improving process reliability.

Mist eliminators are commonly used in a wide variety of applications, including oil and gas filtration, chemical processing, petrochemical refining, and power plants, where gas purification is essential.

How Do Mist Eliminators Work?

The primary purpose of a mist eliminator is to separate tiny liquid droplets from gases in industrial systems. The working principle of a mist eliminator relies on different physical mechanisms, including coalescence, inertial impaction, and diffusion. Here’s a breakdown of how mist eliminators function:

Gas enters the mist eliminator: The gas stream, which contains liquid droplets (mist), is directed into the mist eliminator.
Droplet Capture: Inside the mist eliminator, the gas stream flows through a mesh or series of vanes that capture and coalesce the tiny droplets. These droplets are often too small to be removed by standard filters.
Coalescence: The mist eliminator uses physical barriers (like mesh pads or vane elements) to cause the tiny droplets to combine or coalesce into larger droplets that are easier to remove.
Drainage: Once the droplets have coalesced into larger sizes, they will flow down or collect at the bottom of the mist eliminator, where they can be drained off, while the clean, mist-free gas exits the system.
Purified Gas Exit: The now-clean gas, free from mist or droplets, exits the mist eliminator and can continue through the system without damaging equipment or causing operational issues

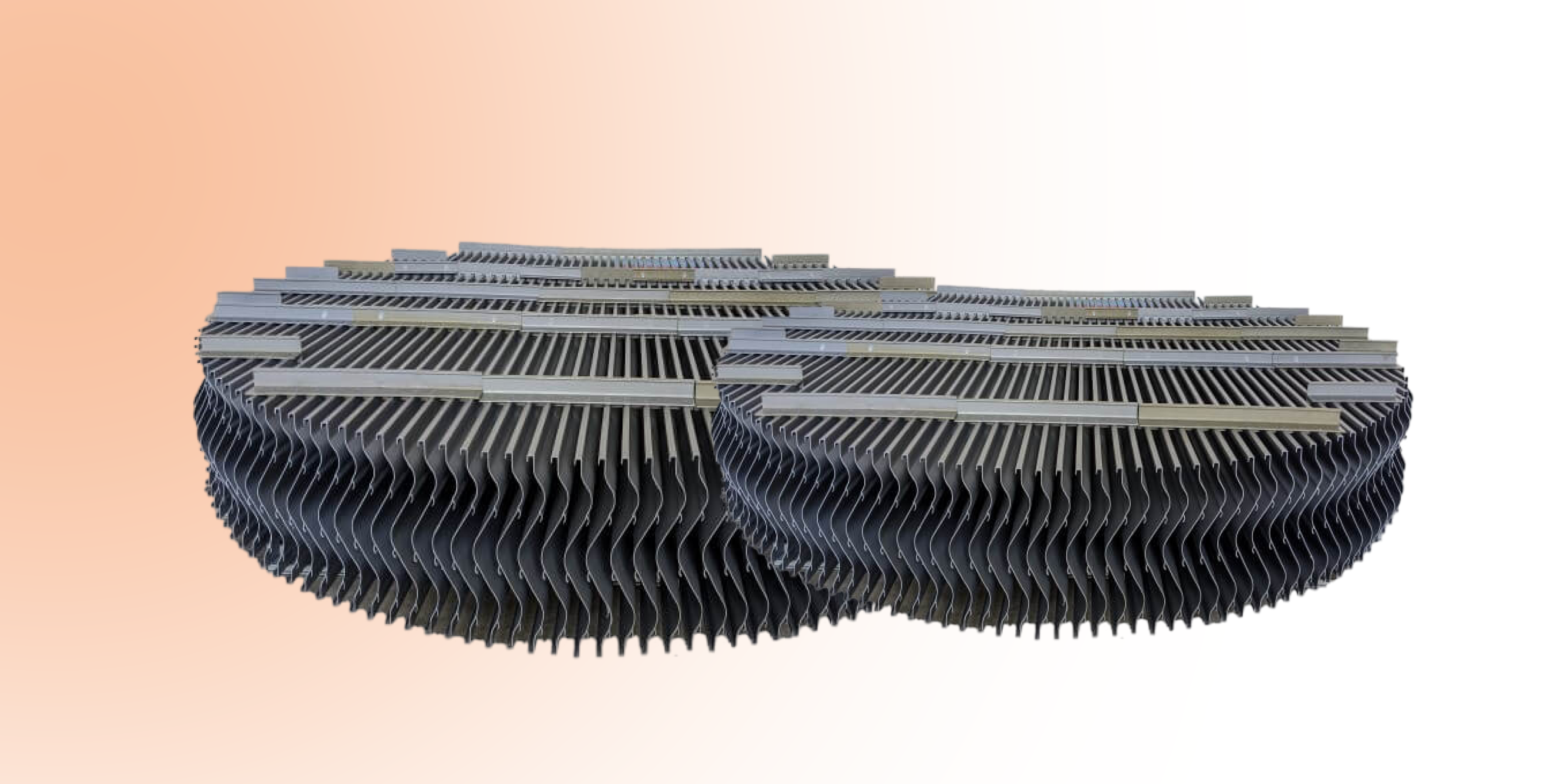

Vane-Type Mist Eliminator: Design and Function

A vane-type mist eliminator uses a series of specially designed blades or vanes to capture and remove liquid droplets from gas streams. These vanes create a tortuous path for the gas, causing droplets to impact the vane surfaces and either coalesce or be deflected into a collection tray.

Key Features of Vane-Type Mist Eliminators:

Vanes: Made from materials like stainless steel or plastic, the vanes create turbulence in the gas stream that forces droplets to collide with the surfaces.
Coalescing Efficiency: As the droplets collide with the vane surfaces, they combine (coalesce) into larger droplets that are easier to remove.
Durability: Vane-type mist eliminators are designed to handle high flow rates and can operate under a wide range of pressures and temperatures.

Applications of Vane-Type Mist Eliminators:

Oil and Gas: To capture water or oil droplets in gas streams.
Chemical Processing: In systems where vapor-phase contaminants need to be removed.
Power Plants: To clean exhaust gases and improve air quality.

Oil Mist Eliminators: Specialized Filtration for Oil and Gas Systems

An oil mist eliminator is a specific type of mist eliminator designed to capture and remove oil mist from gas streams. Oil mist, often produced in compressor units, turbines, or engines, can damage equipment and cause environmental concerns. Oil mist eliminators play a critical role in removing these fine oil droplets from exhaust gases or air intake systems.

Oil Mist Eliminator Working Principle:

The working principle of an oil mist eliminator is similar to that of a standard mist eliminator, but it is optimized to capture oil droplets. Here’s how it works:

Oil-laden gas enters the eliminator: The gas stream containing fine oil droplets is directed into the oil mist eliminator.
Oil Droplet Capture: The mist eliminator uses coalescing filters or other filtration media to capture and combine the fine oil droplets into larger droplets.
Coalescence and Drainage: The collected oil droplets merge into larger droplets, which are then drained away from the system.
Purified Gas Exits: The gas, now free from oil mist, exits the system, ensuring the protection of downstream equipment.

Advantages of Oil Mist Eliminators:

Protects Equipment: Prevents oil mist from reaching sensitive machinery, such as turbines and compressors.
Improves Efficiency: By removing oil mist, these devices help maintain optimal system performance.
Environmental Benefits: Oil mist eliminators help reduce the environmental impact by preventing oil droplets from being released into the atmosphere.

Mist Eliminator Applications in Oil and Gas Filtration

Mist eliminators are used extensively in the oil and gas industry for gas purification and filtration. Here are some of the key applications:

Compressor and Turbine Systems: In oil refineries and power generation plants, mist eliminators remove oil mist from exhaust gases produced by compressors and turbines.
Gas Processing Plants: Used to remove water or oil mist from natural gas or other hydrocarbon gases before they are further processed or transported.

Separators and Scrubbers: Mist eliminators are often integrated into gas separators or scrubbers, where they help clean the gas stream before it is released into the atmosphere or sent for further processing.

Conclusion

Mist eliminators are essential for maintaining clean gas streams and protecting equipment from contamination, particularly in industries such as oil and gas. By removing mist, oil droplets, and aerosols from gas streams, mist eliminators enhance the efficiency and reliability of filtration systems. Whether using a vane-type mist eliminator, oil mist eliminator, or other mist removal technologies, these systems ensure that industrial processes continue to run smoothly and safely.

FAQ'S

What is the primary function of a mist eliminator?

A mist eliminator captures and removes fine liquid droplets, such as water or oil mist, from gas streams to protect equipment and improve air quality.

What is the difference between a vane-type mist eliminator and an oil mist eliminator?

A vane-type mist eliminator uses vanes to remove mist, while an oil mist eliminator is specifically designed to remove fine oil droplets from exhaust gases or air streams.

Where are mist eliminators commonly used?

Mist eliminators are used in industries like oil and gas, chemical processing, and power plants to remove mist from gases in compressor systems, turbines, and separators.

How do oil mist eliminators benefit the oil and gas industry?

Oil mist eliminators protect compressors, turbines, and other equipment from oil contamination, improve system efficiency, and reduce environmental impact by preventing oil mist release into the atmosphere.
